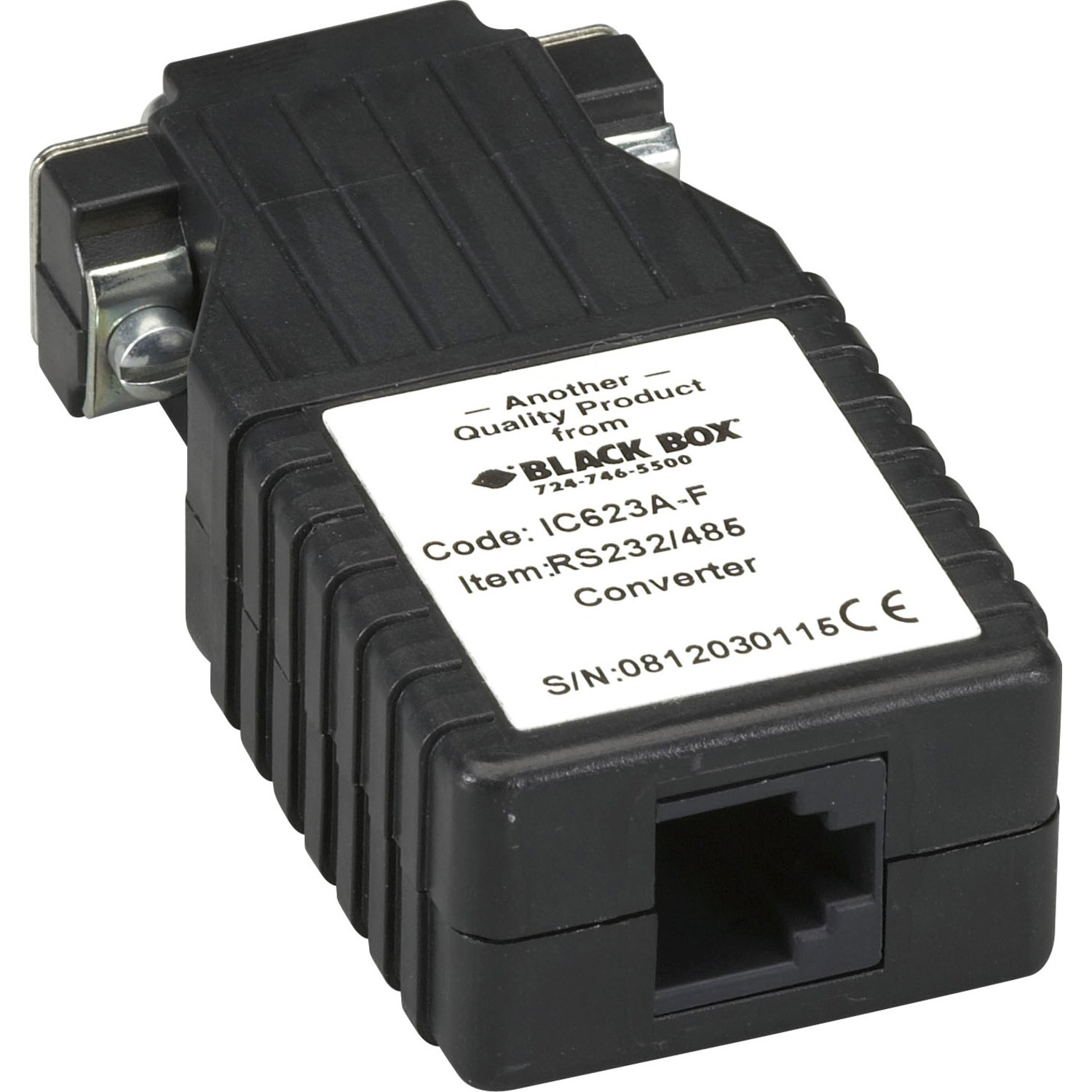

Black Box IC623A-F RS-232/485 Converter

  • Part: 1053215
$149.55

Availability

In Stock
  • General Information
    • Manufacturer
    • Black Box Corporation
    • Manufacturer Website Address
    • http://www.blackbox.com
    • Brand Name
    • Black Box
    • Product Condition
    • New
    • Product Type
    • Transceiver/Media Converter

  • The RS-232 connector is DB9 female; the RS-485 connector is RJ-11; other connectors are available (see Related Items).
  • Built-in silicon avalanche diode surge protection against data loss and equipment damage from transient surges.
  • You can also "fine tune" impedance and "echo" characteristics for your individual application.
  • For configuration, the converter features two internal 4-position DIP switches.

    • Warranty
      • Limited Warranty
      • 1 Year

    • Interfaces/Ports
      • Total Number of Ports
      • 2
      • Number of RJ-11 Ports
      • 1
    • Media & Performance
      • Maximum Distance Supported
      • 24 km
    • Physical Characteristics
      • Form Factor
      • External
      • Height
      • 2.5"
      • Width
      • 1.2"
      • Depth
      • 0.8"
    • Miscellaneous
      • Additional Information

      • Features:

        • Operates asynchronously, point-to-point or multi point, over 2 or 4 wires
        • Up to 31 multi point device drops in a polling environment
        • Data rates up to 115.2 Kbps
        • Passes transmit and receive data, one control signal in each direction
        • Variable high/low impedance settings
        • No AC power or batteries required
        • Able to operate with or without "echo."
        • Carrier can be set as "constantly on"
      • Country of Origin
      • United States
      • TAA Compliant
      • Yes
