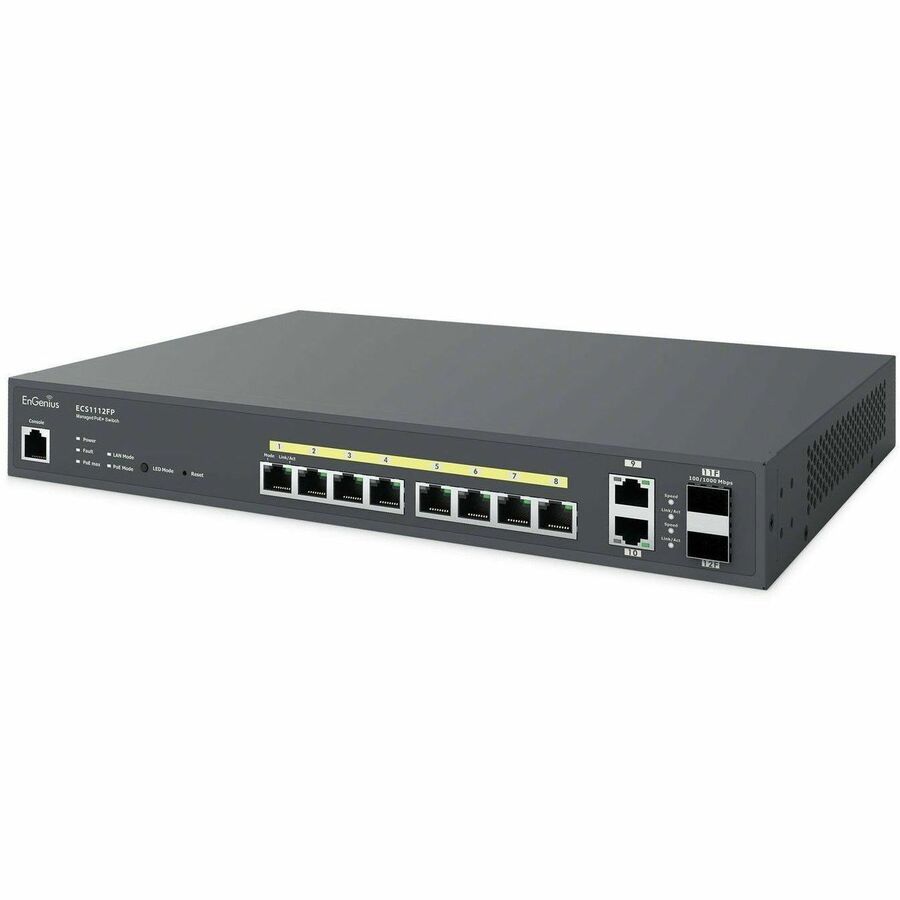

EnGenius Cloud Managed Layer 2+ Switch ECS1112FP offers 8 Gigabit PoE+ ports, 2 DualSpeed SFP uplink ports, and a 130W budget, ideal for SMBs. It supports zero-touch provisioning and centralized cloud management. With advanced security features, Voice-VLAN, and PoE Extended Mode, it optimizes network efficiency for quality voice and video traffic, enabling peak performance for SMBs. | Features & Benefits
- 8x Gigabit PoE+ ports and 2 x DualSpeed SFP (1G Fiber) uplink ports for high-speed connections
- 8x 802.3af/at PoE+ ports with 130W PoE budget
- Zero touch provisioning, centralized cloud management and visualized monitoring
- Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
- Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
- Optimized for quality voice and video traffic with Voice-VLAN feature
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and autoreboot PoE power for failed camera Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades
- General Information
- Manufacturer
- EnGenius Technologies, Inc
- Manufacturer Website Address
- http://www.engeniustech.com
- Brand Name
- EnGenius
- Packaged Quantity
- 1
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- Remote/Cloud Management
- Zero-Touch Provisioning (ZTP)
- DHCP Snooping
- Access Control List
- Broadcast Storm Control
- Strict Priority Queuing (SPQ)
- Remote Monitoring (RMON)
- DHCP Relay
- Energy Efficient
- Reset Button
- Interfaces/Ports
- Total Number of Network Ports
- 10
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 2 x 10/100/1000BASE-T Gigabit Ethernet RJ-45/SFP Combo Port
- 2 x Gigabit Ethernet SFP Expansion Slot
- 1 x RJ-45 Console Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Shared SFP Slot
- Yes
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1x
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.3ad
- IEEE 802.3az
- Management & Protocols
- Manageable
- Yes
- Switch Management Type
- Smart Managed
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 130 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- AC
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Desktop
- Height
- 1.7"
- Width
- 13"
- Length
- 9"
- Weight (Approximate)
- 9.70 lb
- Miscellaneous
- Package Contents
- Cloud Managed 8-Port Gigabit 130W PoE+ Switch
- 1 x Product Card
- 1 x Power Cord
- 1 x RJ45 Console Cable
- 1 x Rack Mount Kit
- Application/Usage
- Network
- Security
- Traffic
- Camera
- IoT Devices
- Server
