- General Information
- Manufacturer
- Hanwha Group
- Manufacturer Website Address
- http://www.hanwha.com
- Brand Name
- Wisenet
- Product Series
- X
- Product Type
- Network Camera

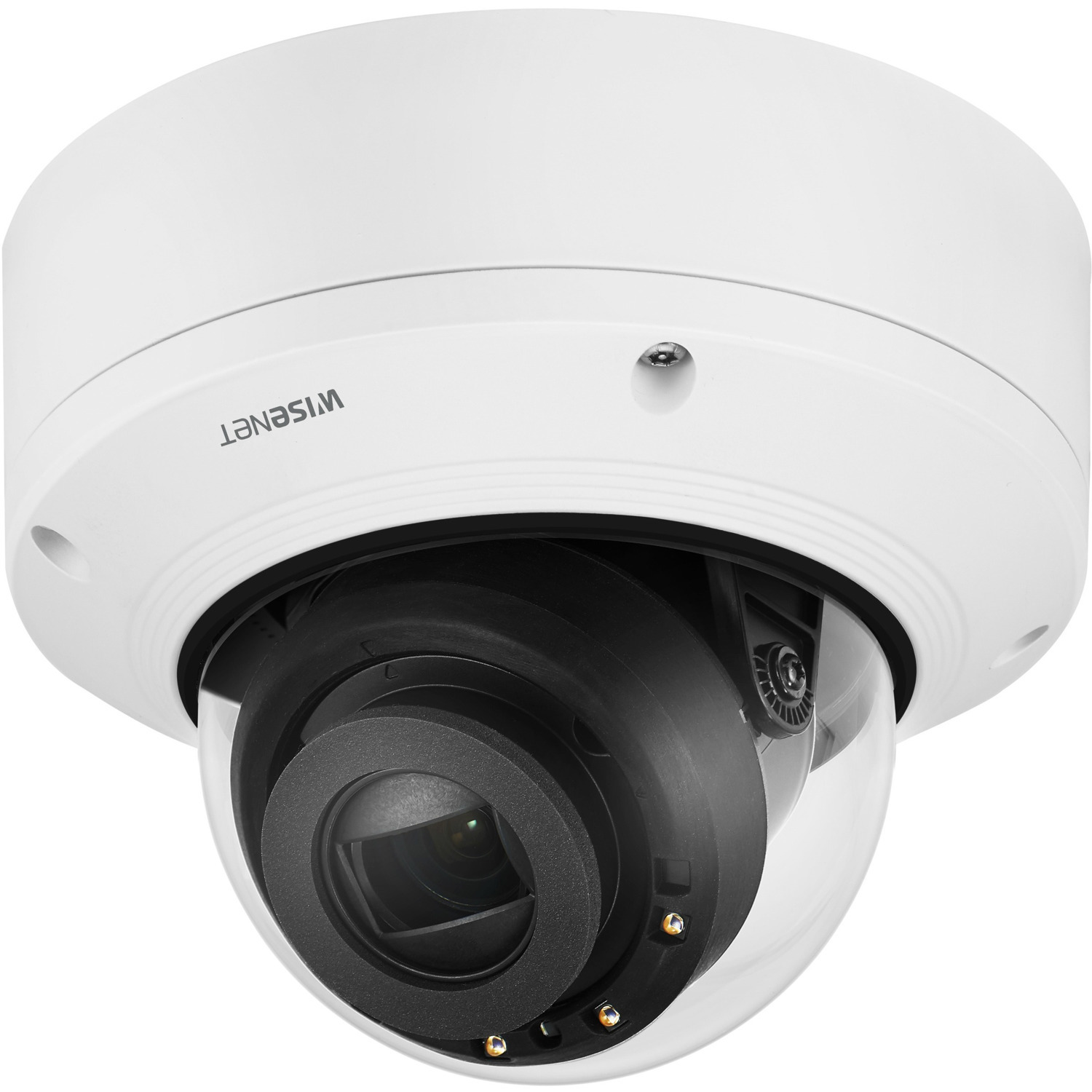

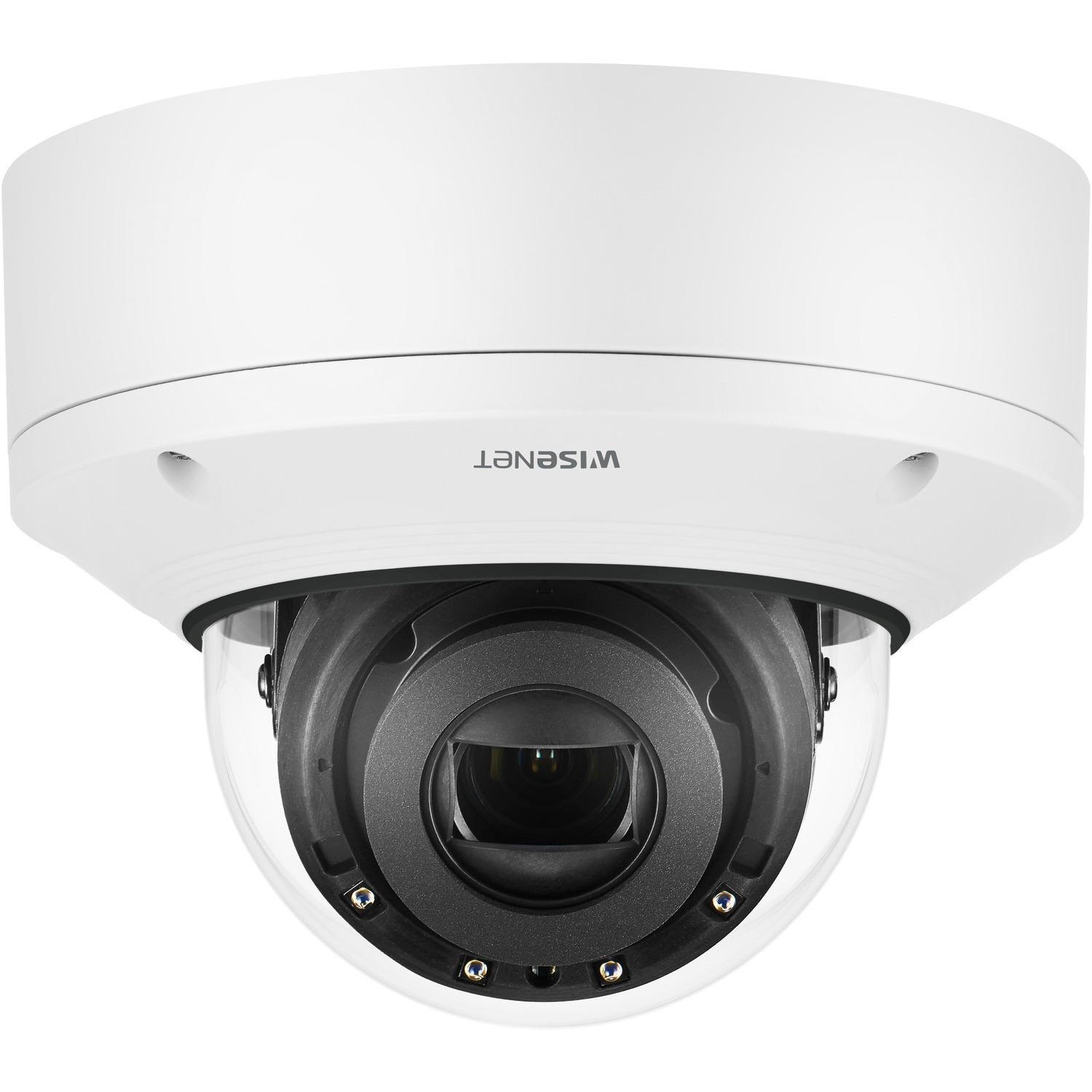

The Wisenet X Plus powered by Wisenet 5 network indoor vandal dome camera features a modular structure, 2MP, Full HD(1080p) @ 60fps, motorized vari-focal lens 4.3x (2.8~12mm) (119.5°~27.9°). 164 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 150dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, IP52, IK10, white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Recording Formats
- Full HD
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 164.04 ft
- Night Vision Type
- Infrared
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Monochrome
- Field of View
- H : 119.5°(Wide)~27.9°(Tele) V : 62.8°(Wide)~15.7°(Tele) D : 142.1°(Wide)~32.0°(Tele)
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- MJPEG
- H.264
- H.265
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 60 fps
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 2.80 mm
- Maximum Focal Length
- 12 mm
- Lens Included
- Yes
- Minimum Aperture
- f/1.4
- Maximum Aperture
- f/3.6
- Optical Zoom
- 4.3x
- Exposure
- Shortest Shutter Speed
- 1/12000 Second
- Longest Shutter Speed
- 2 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Physical Characteristics
- Mount Type
- Hanging Mount
- Form Factor
- Dome
- Durability
- Shock Resistant
- Color Family
- White
- Product Color
- White
- Height
- 4.9"
- Diameter
- 6.3"
- Weight (Approximate)
- 3.20 lb
- Environmental Conditions
- Minimum Operating Temperature
- -13°F (-25°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Maximum Operating Humidity
- 90%
- Miscellaneous
- Features
- Wide Dynamic Range
- Day/Night
- Back Light Compensation (BLC)
- Defog
- Digital Image Stabilization
- Digital Noise Reduction
- Gain Control
- White Balance
- Privacy Masking
- Motion Detection
- Indoor/Outdoor
- Indoor
- Package Contents
- 2MP Vandal-Resistant Indoor IR Network Dome Camera
- Ivory Skin
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP52
- NDAA Compliant
- Yes
