- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- AKG
- Product Type
- Wireless Bodypack Microphone Transmitter

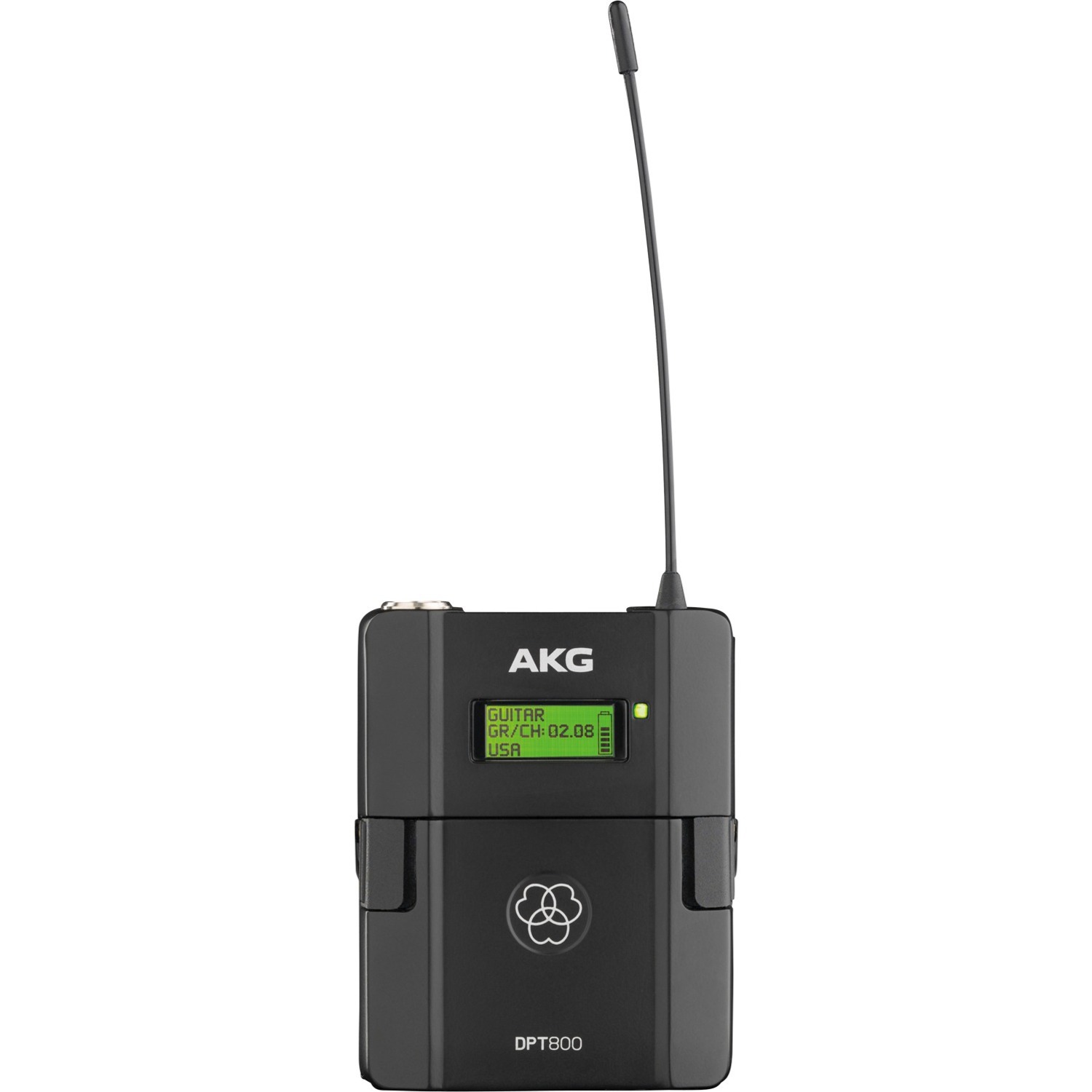

The DPT800 reference digital wireless body-pack transmitter, for use with the DSR800 wireless receiver, provides an ultra-wide bandwidth of 150 MHz and a selectable radio output power of 10- 50mW (depending on frequency band). For convenience and versatility, the transmitter can be programmed remotely via infrared data transmission from the DSR800 receiver, and signal security is ensured through the use of 512-bit encryption technology. The DPT800 features an optional external mute/power switch that allows muting and on/off operation even when the transmitter is hard to access. The three-pin mini XLR audio input is compatible with any AKG lavalier and head-worn microphone and provides a bias voltage of 5V.
- Technical Information
- Minimum Operating Frequency
- 548.10 MHz
- Maximum Operating Frequency
- 697.90 MHz
- Minimum Frequency Response
- 25 Hz
- Maximum Frequency Response
- 20 kHz
- Operating Range
- 328.08 ft
- Interfaces/Ports
- XLR
- Yes
- Battery Information
- Battery Chemistry
- Nickel Metal Hydride (NiMH)
- Physical Characteristics
- Product Color
- Black
- Height
- 3.2"
- Width
- 2.6"
- Depth
- 1.1"
- Miscellaneous
- Certifications & Standards
- CE
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
