- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- AKG
- Product Type
- Wireless Microphone System Receiver
EVEN MORE DIGITAL

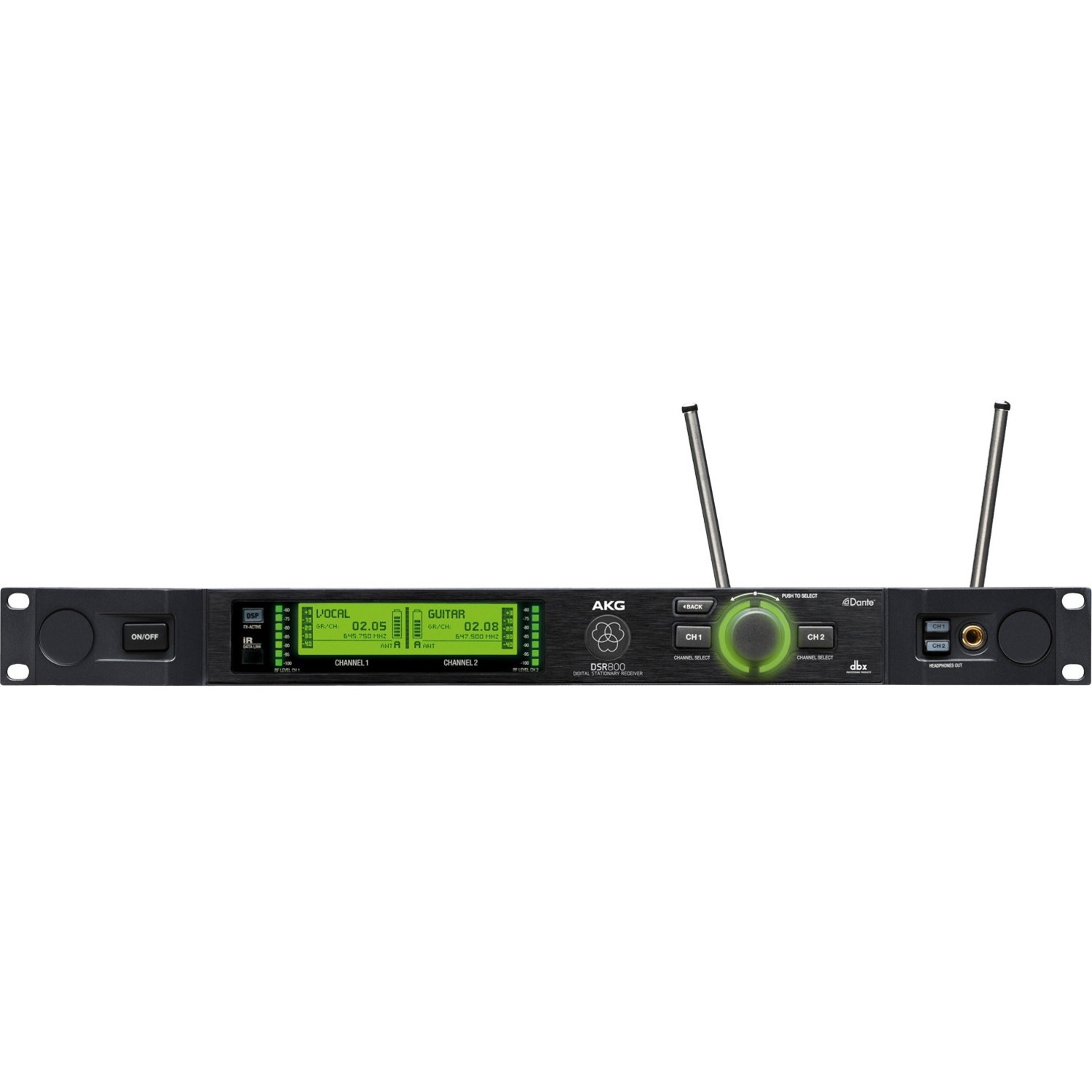

The DSR800 reference two-channel digital wireless receiver provides an ultra-wide bandwidth of up to 150MHz for reliable operation with the flexibility to meet the needs of a wide range of applications. It is designed to work with the versatile DHT800 handheld transmitter, which offers interchangeable microphone capsules, and the DPT800 body-pack transmitter, for line- and microphone signals. For enhanced flexibility, the DSR800 provides two digital audio outputs - for DANTE and AES EBU. The receiver finds interference-free channels and synchronizes the corresponding setup data to the transmitter via infrared signal. The environment scan converts the DSR800 into a spectrum analyzer, scanning the receiver's frequency band for active radio frequencies and displaying the spectrum.
- Technical Information
- Minimum Operating Frequency
- 548.10 MHz
- Maximum Operating Frequency
- 697.90 MHz
- Minimum Frequency Response
- 25 Hz
- Maximum Frequency Response
- 20 kHz
- Operating Range
- 328.08 ft
- Interfaces/Ports
- XLR
- Yes
- 6.35mm (?1/4")
- Yes
- Power Description
- Input Voltage Range
- 90 V AC - 240 V AC
- Physical Characteristics
- Product Color
- Black
- Height
- 1.8"
- Width
- 9.1"
- Length
- 18.9"
- Weight (Approximate)
- 5.25 lb
- Miscellaneous
- Certifications & Standards
- CE
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Energy Efficiency Compliance
- Ecodesign
