- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- AKG
- Packaged Quantity
- 1
- Product Type
- Wireless Bodypack Microphone Transmitter
Flexible and expandable

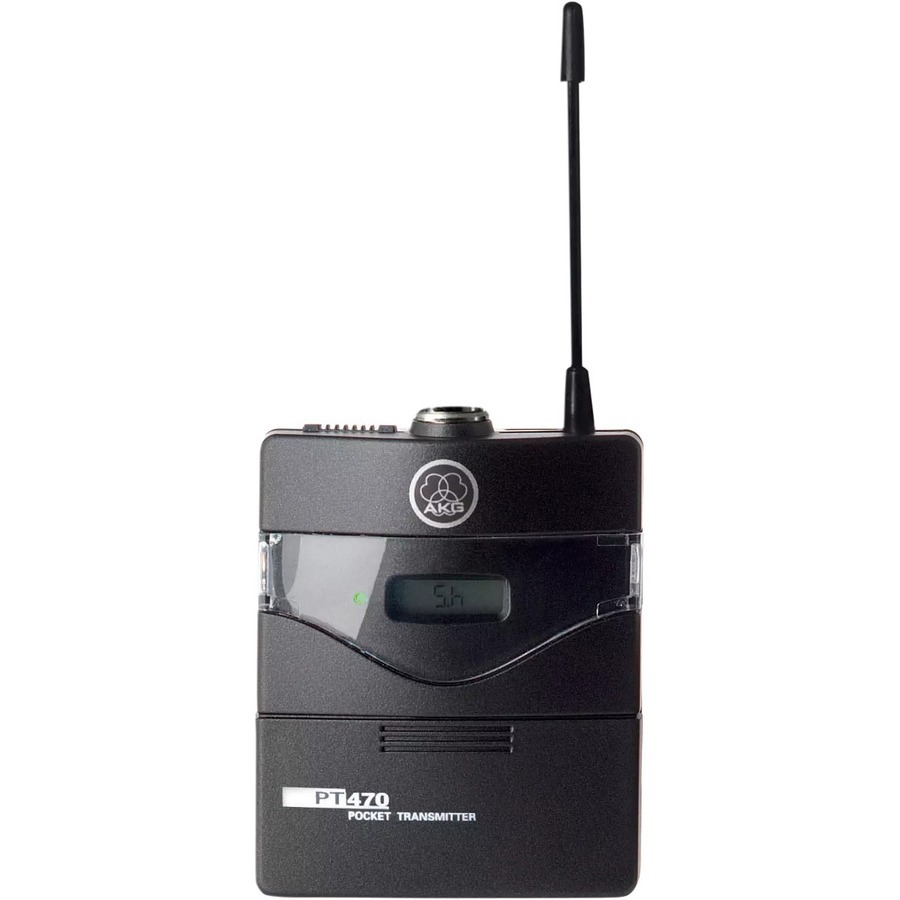

The PT470 is an analog professional wireless body-pack transmitter in a small, rugged housing. A pilot tone transmission prevents unexpected startup noise, continuously sending transmitter data, including low battery information, to the receiver. An enhanced battery management allows up to 14 hours of operation on a single AA-size battery. With the integrated charging contacts, a standard NiMH rechargeable battery can be charged inside the transmitter. An optional RMS4000 external mute switch allows the user to mute the transmitter remotely. Its professional mini XLR audio connector makes the body pack compatible with a broad range of lavalieres and headsets.
- Technical Information
- Minimum Operating Frequency
- 570.10 MHz
- Maximum Operating Frequency
- 600.50 MHz
- Minimum Frequency Response
- 35 Hz
- Maximum Frequency Response
- 20 kHz
- Signal to Noise Ratio (SNR A-Weighted)
- 120 dB(A)
- Operating Range
- 328.08 ft
- Interfaces/Ports
- XLR
- Yes
- 6.35mm (?1/4")
- Yes
- Battery Information
- Battery Size Supported
- AA
- LR6
- Battery Chemistry
- Nickel Metal Hydride (NiMH)
- Lithium Ion (Li-Ion)
- Alkaline
- Battery Run Time
- 8 Hour
- 14 Hour
- 7 Hour
- Physical Characteristics
- Product Color
- Black
- Product Material
- Plastic
- Height
- 2.9"
- Width
- 2.4"
- Length
- 1.2"
- Weight (Approximate)
- 3.17 oz
- Miscellaneous
- Package Contents
- 1 x PT470 Professional Wireless Body-Pack Transmitter
- 1 x AA Size battery
- 1 x BC400 Belt Clip
