Boxed NUC - Next Unit of Computing Kit - Processor Intel Braswell Celeron N3050 (2.16 GHz Dual Core , 6W TDP) Memory - DDR3L SODIMM - 1.35V, 1333/1600 MHz, 8GB maximum Graphics - Intel HD Graphics - 1x HDMI 1.4a - 1x HDB15 VGA Audio - Up to 7.1 surround audio via HDMI - Headphone/Microphone jack on the front panel - Headphone/TOSLINK jack on the rear panel Peripheral Connectivity - 2x USB 3.0 ports on the back panel - 2x USB 3.0 ports on the front panel (1x charging capable) - 2x Internal USB 2.0 via header - Consumer Infrared sensor on the front panel Storage - Internal SATA3 support for 2.5 HDD/SSD (up to 9.5mm thickness) - SDXC slot with UHS-I support on the side Networking - 10/100/1000Mbps Network Connection - Intel Wireless-AC 3165 M.2 2230, wireless antennas (IEEE 802.11ac, Bluetooth* 4, Intel Wireless Display) Enclosure - Silver with Black Top - Plastic shell with metal inner structure - Dimensions : 115mm x 111mm x 51.6mm Power Adapter - 19V, 65W wall-mount AC-DC power adapter - Multi-country plugs (IEC types A/C/G/I) Additional Features - Support for user-replaceable 3rd party lids - NFC and AUX_PWR headers - OS certs: Windows 7 & 8.1 Logo'd - OS compatibility: Ubuntu, Linux Mint, Android, Fedora, OpenSUSE - VESA mount bracket and mounting hole support - Low-acoustics active cooling design - Kensington lock support with base security - Integration Guide - 12-19V DC Power Input.
- General Information
- Manufacturer
- Intel Corporation
- Manufacturer Website Address
- http://www.intel.com
- Brand Name
- Intel
- Product Type
- Desktop Computer
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Manufacturer
- Intel
- Processor Type
- Celeron
- Processor Model
- N3050
- Processor Core
- Dual-core (2 Core)
- Processor Speed
- 1.60 GHz
- Burst Frequency
- 2.16 GHz
- Cache
- 2 MB
- 64-bit Processing
- Yes
- Hyper-Threading
- No
- vPro Technology
- No
- Memory
- Standard Memory
- No
- Maximum Memory Supported
- 8 GB
- Memory Technology
- DDR3L SDRAM
- Display & Graphics
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- HD Graphics
- Graphics Memory Technology
- DDR3L SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ac
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 4.0

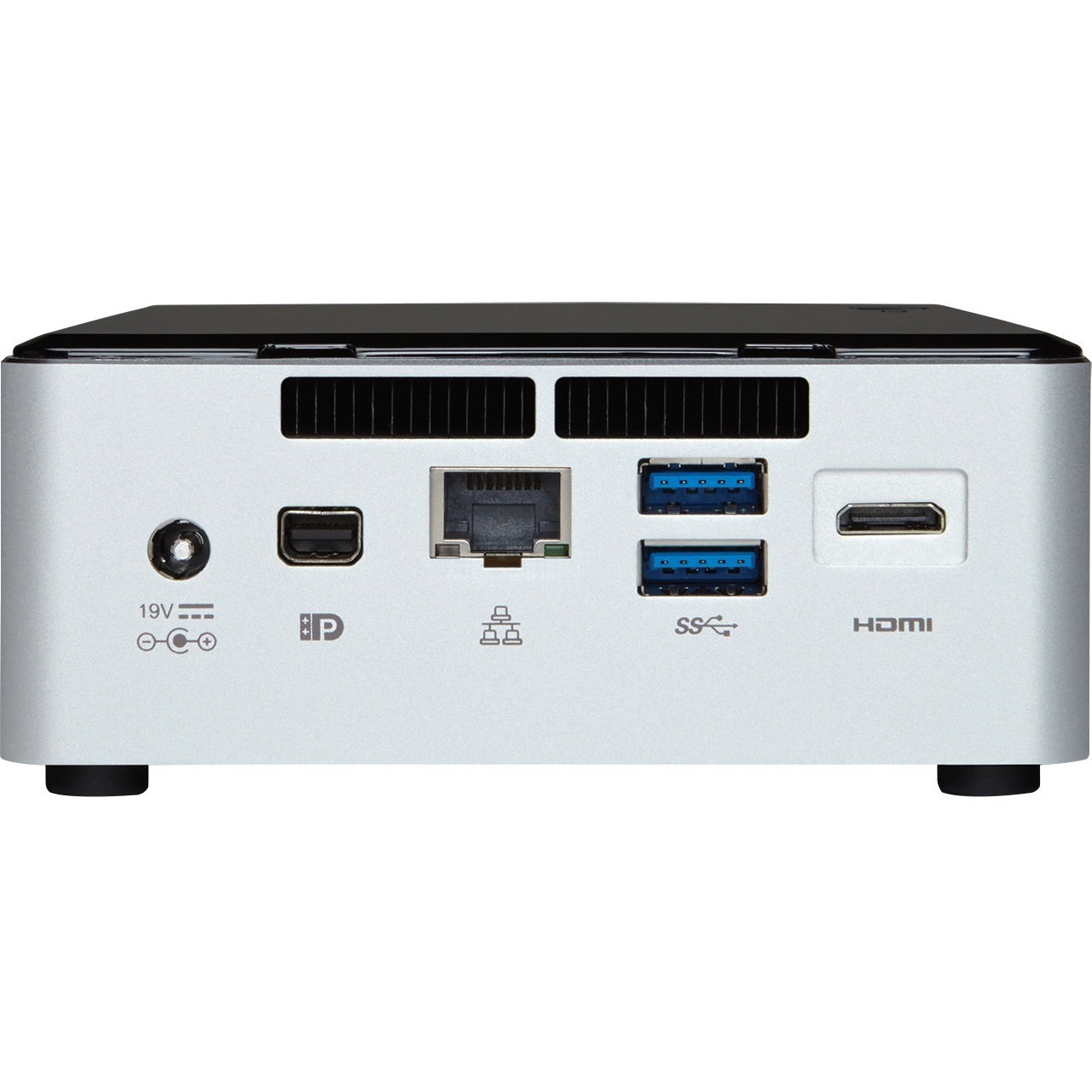

- Interfaces/Ports
- Number of HDMI Outputs
- 1
- HDMI
- Yes
- Total Number of USB Ports
- 6
- Number of USB 2.0 Ports
- 2
- Number of USB 3.0 Ports
- 4
- Number of VGA Ports
- 1
- VGA
- Yes
- Power Description
- Maximum Power Supply Wattage
- 65 W
- Physical Characteristics
- Color Family
- Dual Color
- Product Color
- Silver
- Black
- Form Factor
- Mini PC
- Height
- 2"
- Width
- 4.5"
- Depth
- 4.4"
- Weight (Approximate)
- 3 lb
- Miscellaneous
- Package Contents
- NUC5CPYH Desktop Computer
- Power Adapter
- Systems Management
- No vPro Support
- Features
- Security Slot
