- General Information
- Manufacturer
- Juniper Networks, Inc
- Manufacturer Website Address
- http://www.juniper.net
- Brand Name
- Juniper
- Product Series
- QFX5130
- Product Type
- Switch Chassis

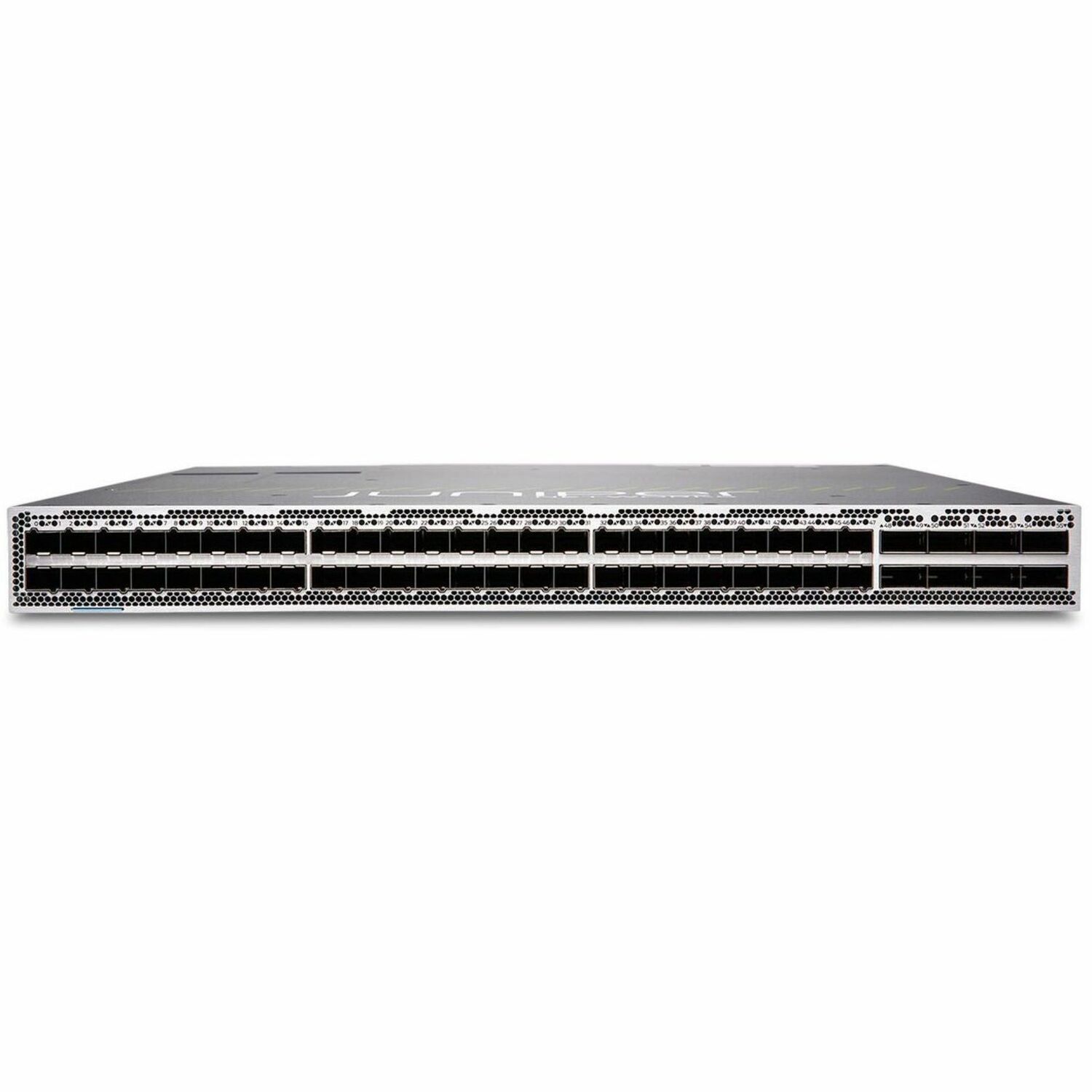

Juniper Networks® QFX5130 line of Switches is a high-radix, high-density, 1 U platform suitable for today's data centers. The two options are a perfect choice for leaf, border leaf, and spine roles within IP networks, as well as Ethernet VPN - Virtual Extensible LAN (EVPN-VXLAN) fabrics. For large public cloud providers-early adopters of high- performance servers to meet increasing workload growth-the QFX5130 supports very large, dense, and fast 400GbE IP fabrics based on proven, Internet-scale technology. For enterprise data center customers seeking investment protection as they transition their server farms from 10GbE to 25GbE, the QFX5130 switch provides a high radix-native 100GbE/400GbE EVPN-VXLAN option with reduced power and a smaller footprint. Additional Remote Direct Memory Access over Converged Ethernet (RoCEv2) capabilities in the QFX5130 make it suitable in IP storage deployments. Instead of relying on deep buffer switching, QoS mechanisms such as Priority-based Flow Control-DiffServ code point (PFC-DSCP) and Explicit Congestion Notification (ECN) help deliver high performance for storage workloads. Support for high-power 400G-ZR and 400G-ZR-M optics makes it suitable for edge and DCI use cases.
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- Uplink Port
- Yes
- Modular
- Yes
- Port/Expansion Slot Details
- 48 x 400GBase-X Expansion Slot
- 8 x 100GBase-X Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 400 Gigabit Ethernet
- 100 Gigabit Ethernet
- Network Technology
- 100GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 56.0
- Expansion Slot Type
- QSFP-DD
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1Qbb
- IEEE 802.1p
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1Q
- IEEE 802.3ad
- IEEE 802.1ab
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 2
- Power Consumption
- 554 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 20.5"
- Weight (Approximate)
- 27 lb
- Miscellaneous
- Application/Usage
- Network
- Data Center
- Campus
- Enterprise
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
